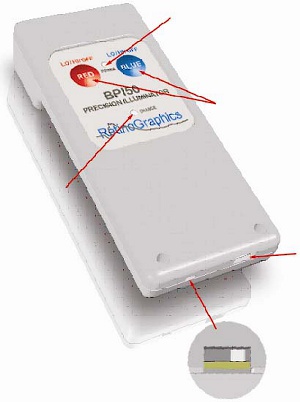

POWER LED (Active when ON)
Green: Fully charged
Orange: Several hours use remaining
Red: Several minutes remaining
Flash (
Red): Cannot be used without charging

1. S. Hattar, R. J. Lucas, N. Mrosovsky, S. Thompson, R. H. Douglas, M. W. Hankins, J. Lem, M. Biel, F. Hofmann, R. G. Foster, K.-W. Yau Melanopsin and rod-cone photoreceptive systems account for all major accessory visual functions in mice. Nature. 2003 July 3; 424(6944):76-81.

2. LB W5SN Platinum Dragon Data Sheet. OSRAM Opto Semiconductors GmbH. 2008 May 19.

3. LH W5AM Golden Dragon Plus Data Sheet. OSRAM Opto Semiconductors GmbH. 2010 August 26.

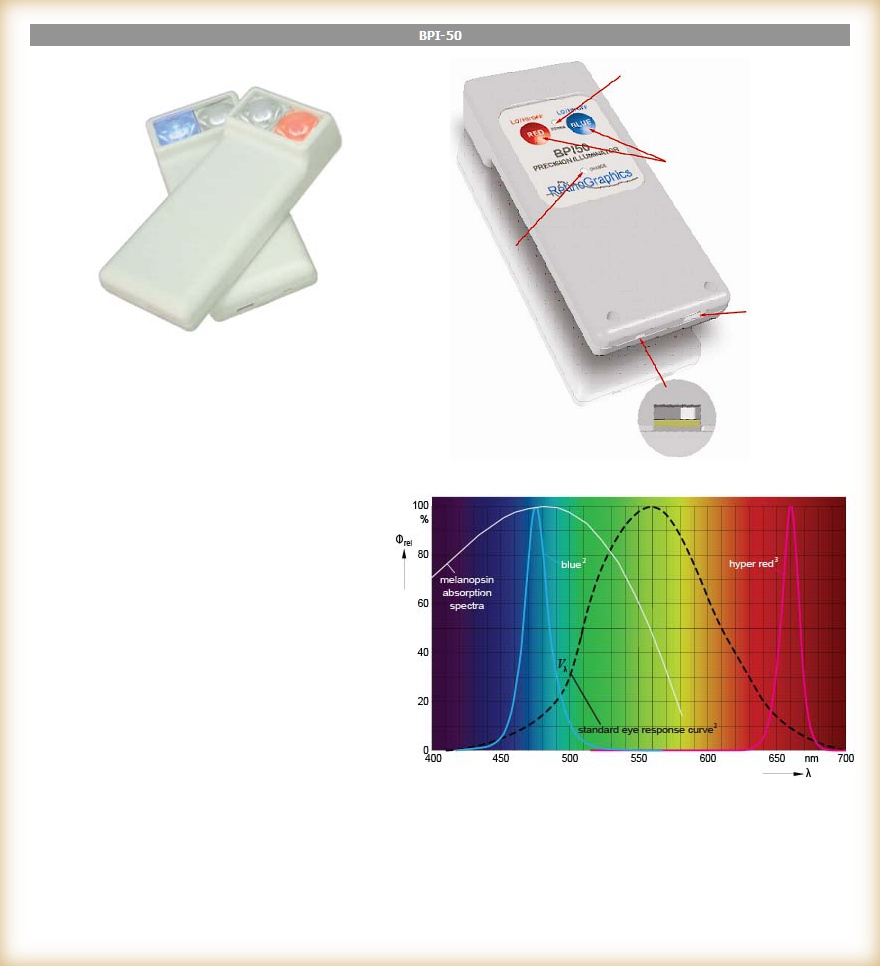

SPECIFICATIONS

Light Sources:

High Intensity Red & Blue LED

Spectra:

Wavelength at Peak Emission

Red: 660nm nominal

Blue: 465nm nominal

Optics:

TIR* & refractive 2.5cm diameter smooth spot @4.0cm

(FWHM** +/-7°)

Illuminance:

(@4cm)

Low

1000 lux +/-5%

High

10000 lux +/-2%

Flux Output:

Low

0.50 lumens

High

5.0 lumens

Auto Off:

Low ~ 5m

High ~ 10s

Run Time:

Low >150hr

High >15hr

Battery:

Type

Li ion polymer, 3.6V/1200mAh

Not user replaceable

Life

>300 charge/discharge cycles

Charge Time

~4.5hr w/supplied charger

~17hr w/USB

Charger:

Input 100-240V/200mA, 50-60Hz

Output 5.0V/1.0A

Size:

52.3mm x 124.6mm x 25mm

Weight:

Approx. 94g

* Total Internal Reflection

** Fill Width at Half Maximum



CONTROL BUTTONS
First press: Low intensity
Auto OFF in 5m
Second press: High intensity
Auto OFF in 10s
Third press: OFF
Home | Products | More | Resources
CHARGE LED (Active only when charger is operating)
Green: Fully charged
Orange: Charging in progress
Flash (
Grn/Orn): Charge fault, contact RGI
Copyright RetinoGraphics, Inc. | All Rights Reserved
CHARGE PORT
Micro USB
(NOTE - Charge for several hours before first use)

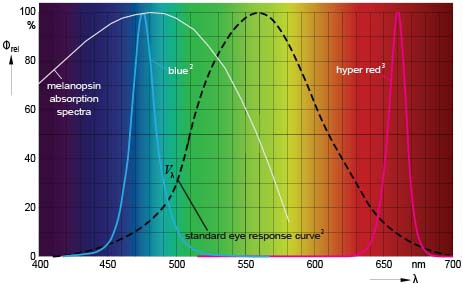

SPECTRAL RESPONSE
TRANSPORT SWITCH
Left: SAFE/OFF
Right (shown): NORMAL/ON
As shown in the graph above, emission from both the blue and red light sources overlap the standard eye response. Either will stimulate the rod-cone photoreceptor pathway.
There is virtually no output from the hyper red source within the absorption spectra of the melanopsin pathway. Only the blue source will elicit a melanopsin mediated PLR.
APPLICATIONS
Lo Blue: Fluorescein eye test for detecting injuries or abnormalities on the surface of the cornea.
Hi Blue: PLR testing the melanopsin pathway.
Blood detection.
Lo Red: Darkroom spot illumination.
Hi Red: PLR testing the photorecptor path.
